7.2V2A
* 德国权威TUV实验室.赛宝实验室认证,可在www.tuv.com, www.cqc.com.cn查询;
小体积、重量轻、流线型、全密封、携带方便;
* 内置EMI滤波,抗干扰强度好,可靠性能高;
* 100%全负载测试,性能稳定,质量可靠;
* 具有短路,过载,过流保护功能,使用更安全;
* 符合安规要求,工作效率高,节能环保;
* 可按客户要求参数定做;

输入INPUT
可选输入插头Optional input plug






电压Voltage/频率Hz 100V—240VAC 50-60Hz
调整范围Adjusting range 90V—264VAC,47Hz—63Hz
电流Current 1.0A Max
保护Protection 内置一次性保险丝不可拆卸Internal Primary Current Fuse, Inrush Limiting
输出 OUTPUT
空载电压范围No-load voltage range 7.1-7.3VDC
负载电压范围Load voltage range 5-7.23VDC
充电电流Charging current 1900-2200Ma
转灯电流 Turn  lamp current 200-300Ma
纹波Ripple <150mV
瞬态响应Transient Response 在50%负载时0.5毫秒 0.5mS for 50% Load Change Typical
过流保护点OCP 105%~150%
保护Protection 短路保护/过载保护/过温保护,可自动恢复.
Short Circuit protection/Over voltege protection/Over Temperature protection,
Can automatically recover.
常用DC插头Commonly DC plugs  3.5*1.35 4.0*1.7 5.5*2.1 5.5*2.5,可按要求定做,客户没注明长度一律为10mm。
Can be customized according to the requirement,10 mm in length if not specified。
电性 Electrical
绝缘强度Dielectric Withstand 4242 VDC   Primary – Secondary
漏电流Leakage Current 0.25mA @ 2 Pin / 0.5mA @ 3 Pin
指示灯Indicator light 绿色:电池充满或与电池断开状态,红色:起充或充电过程;
Green:charger is full or disconnect;Red:Pre-charger or charging
转换效率  Efficiency 符合5级能效及ERP阶段2认证  Engergy Star Level V & ErP Stage 2 Certified
EMI传导和辐射EMI Conduction & Radiation EN:55022:2010,EN55014-1,EN61000-3-3:2013
浪涌电流 surge current 当输出为额定负载,环境温度为25℃,输入240VAC冷态起动电源时的最大浪涌电流小于30A,
30A MPS@240VAC at 25 ℃ Cold start
抗静电EMS Immunity IEC61000-4-2
绝缘等级Insulation class 输入对地最小50兆欧 50M ohms  minimum from input to ground
平均无故障时间 MTBF 在25℃环境温度下,额定负载工作平均无故障时间30,000小时;
In 25 environment Temp,The Rated load MTBF 30000H
使用环境Environmental
工作温度Operaturing Temperature 0 to +40°C
储存温度Storage Temperature -20 to +80°C
相对湿度Relative Humidity  工作:20%~80%RH  Operating  20 to 80% RH
储存:10 - 90% RH Storage: 10 to 90% RH
冷却方式Cooling 自然冷却Natural Convection Cooling
安规认证Safety Approvals
CCC  TUV-CE-EMC TUV-CE-LVD TUV-GS  TUV-FCC  SAA(RMC) TUV-PSE TUV-CB CUL UL ROHS
其他other
产品尺寸Case Dimension 73*43*28mm
包装细节Packing detail 大约about110G/PCS  外箱尺寸Carton size:460*390*260mm

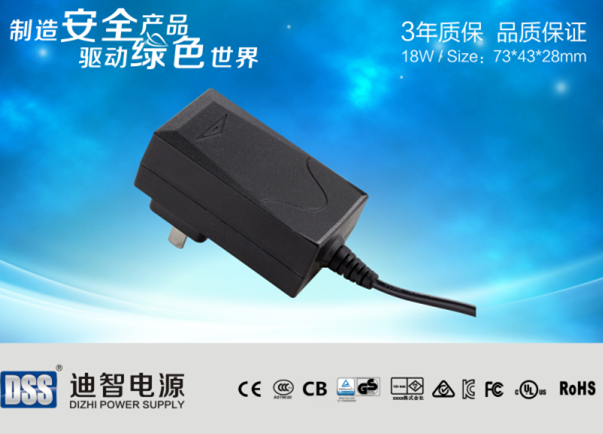

实拍图片actual picture:
